Traditional mapping

• Splice aware: align cDNA to genome index
• Contiguous only: align DNA to genome, or cDNA to transcriptome index
• Gapped: alignments can have gaps

Alignment considerations

• Most aligners use fixed-length seeds to initiate a possible alignment
• These seeds must align exactly
• Tradeoff between sensitivity and specificity

*Not "true" gapped alignment

**GSNAP (value can be changed during compilation)

***Can use SNP info. Optimized for human, but can be adapted

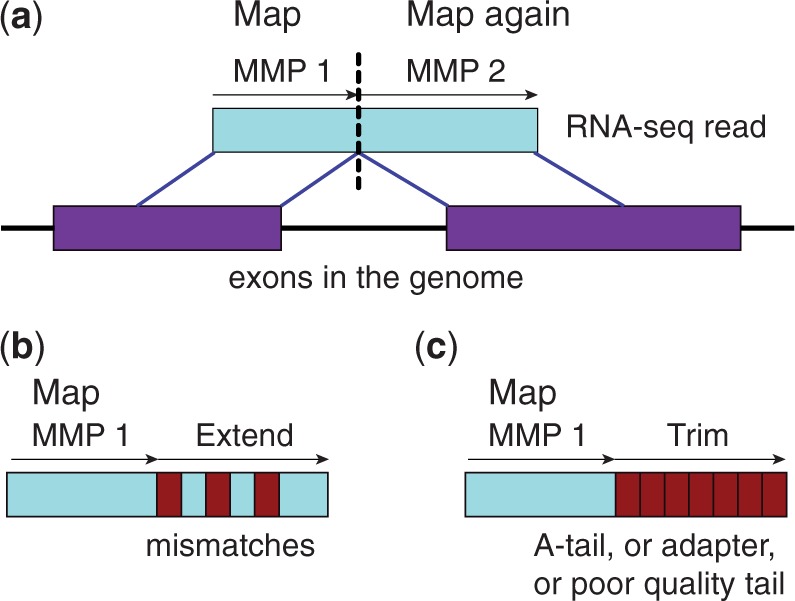

Traditional alignment: seeds (maximum mappable prefix)

Aligner benchmarks

https://www.ecseq.com/support/ngs/best-RNA-seq-aligner-comparison-of-mapping-tools

Aligner benchmarks

https://www.ecseq.com/support/ngs/best-RNA-seq-aligner-comparison-of-mapping-tools

* The time shown includes the (for some tools dominating) index loading step, which will be less influential (or even negligible) when mapping real-life datasets (>10 Mio reads).

Aligner benchmarks

https://www.ecseq.com/support/ngs/best-RNA-seq-aligner-comparison-of-mapping-tools

Aligner benchmarks

https://www.ecseq.com/support/ngs/best-RNA-seq-aligner-comparison-of-mapping-tools

**By default BBMap takes as much memory as the system provides. The minimum requirement for the used genome is 24GB.

Settings?

• Very rarely need to modify defaults
• Seed length: short sequences
• Perfect alignments only
• STAR: various parameters related to memory consumption

The SAM format

A SAM record

samtools view <Alignment SAM/BAM/CRAM>

FCC1L3GACXX:1:1308:5586:93026#
99
Potra000013
27834
254
100M
=
27953
219
CCCCGTTAGTACCATTTGAGTTCTCAACAGCCTGCTCCTGCTCCAATTTTCTCTTCTCCTTTTTCTTCTTCTTCTCTGATTTAGCATCCTCTGAAGCACC
@@CFFDDFHDHFHGHHIIGIIIEGHIHGGIGII@HEHIIIGGII9?FGHIIIGGIGIIIGGGIIIIIIIIIIIIIHICHFEHEHFFFFFCEECCEEDDDD
NH:i:1
HI:i:1
AS:i:196
nM:i:1
MD:Z:100
NM:i:0

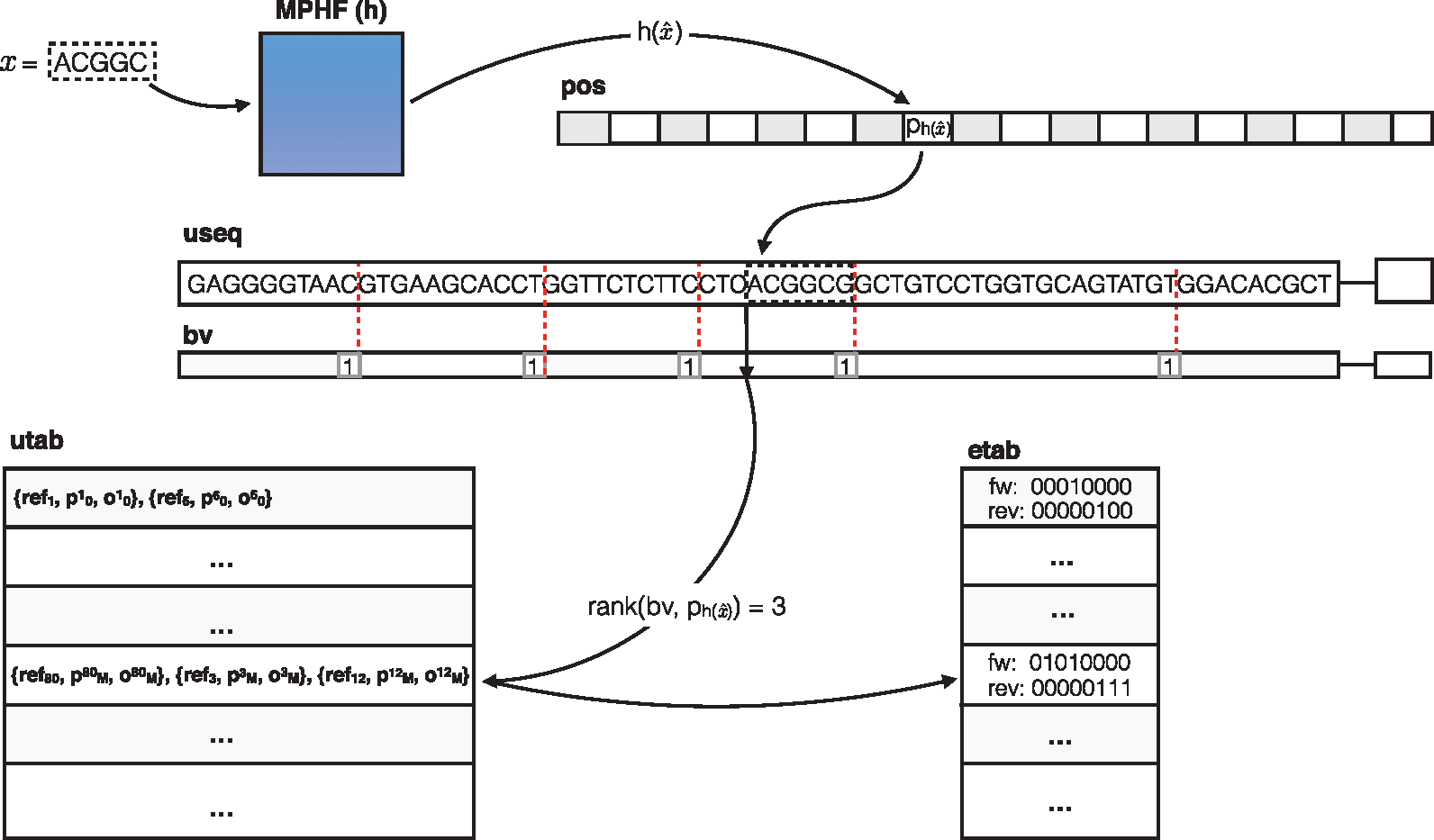

Pseudomapping

• Extremely fast algorithms based on k-mers
• Speed enables probabilistic estimation of confidence intervals (bootstrapping)
• Salmon
• Kallisto

Kallisto

Salmon

Salmon bias corrections

https://mikelove.wordpress.com/2016/09/26/rna-seq-fragment-sequence-bias/

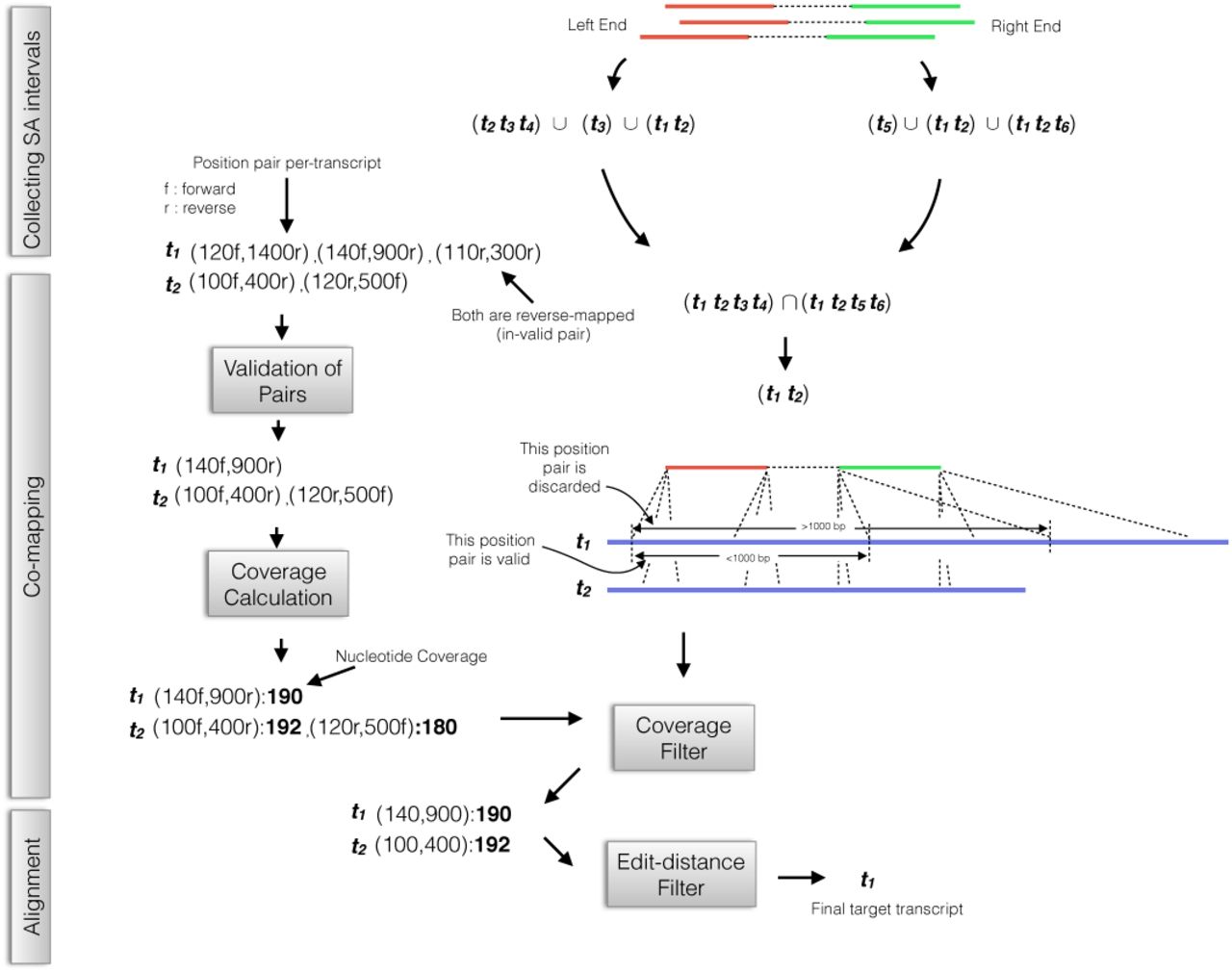

Salmon selective alignment (old PoC)

Select most likely transcript among a set of candidates

https://www.biorxiv.org/content/10.1101/138800v2

Salmon decoy-aware transcriptomes

Experimental datasets are generally more complex and include reads that originate from segments that are not part of the annotated transcripts.

• Requires availability of genome sequence
• Avoids spurious mappings of genomic sequences with high similarity to transcripts
• Introns
• Intergenic sequences
• Unannotated transcripts

https://genomebiology.biomedcentral.com/articles/10.1186/s13059-020-02151-8#Sec21

Parameters?

• Bias: all-on, unless you suspect non-traditional sequences in your organism
• K: default, unless you map to a relative -> sensitivity/specificity

Bootstrapping/Gibbs sampling and Estimating Confidence

Salmon re-samples counts in equivalence classes to estimate uncertainty in abundance estimation

Applications

Terminus can collapse transcripts that have too much uncertainty in the abundance estimation into a group for which the abundance can be estimated accurately.

The group is analyzed as a unit.

Applications

Fishpond uses uncertainty estimates for differential transcript and gene expression.

When to choose what

• Traditional (STAR)
• Novel gene discovery
• RNA-Seq variant discovery
• Cancer -> StarFusion


• Pseudo (Salmon)
• Quantification of known transcripts
• High speed, high accuracy
• No interest in variants
• No interest in discovering novel genes

Practical

• Build a (non-decoy-aware) salmon index.
• Quantify one library

Some hints:

							#!/usr/bin/env bash
salmon index --help
salmon quant --help-reads
TRANSCRIPTS=~/raw_data/reference/Pabies1.0-all.phase.gff3.CDS.fa
SEQDATADIR=~/raw_data/trimmomatic



Tutorial!
